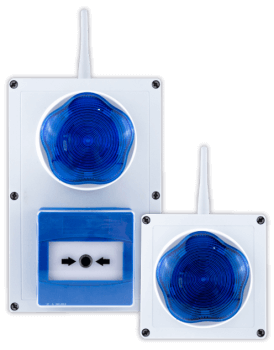

Lockdown Alarm Pro Starter Package
The Lockdown Alarm Pro Starter Package is a high-reliability, professional wireless solution for mission-critical emergency signaling.
Optimized for educational estates and public venues, this infrastructure delivers a synchronized site-wide alert without the complexities of invasive rewiring. Independent of standard IT networks, it ensures your safeguarding protocols remain active when they are needed most.
System Architecture
This Pro Starter Package provides a robust foundation for emergency communications. A single trigger event on the Master Call Point or Remote Keyfob propagates instantly through the secure RF mesh, activating every linked sounder and beacon with millisecond precision.
Quality Wireless Components Included:

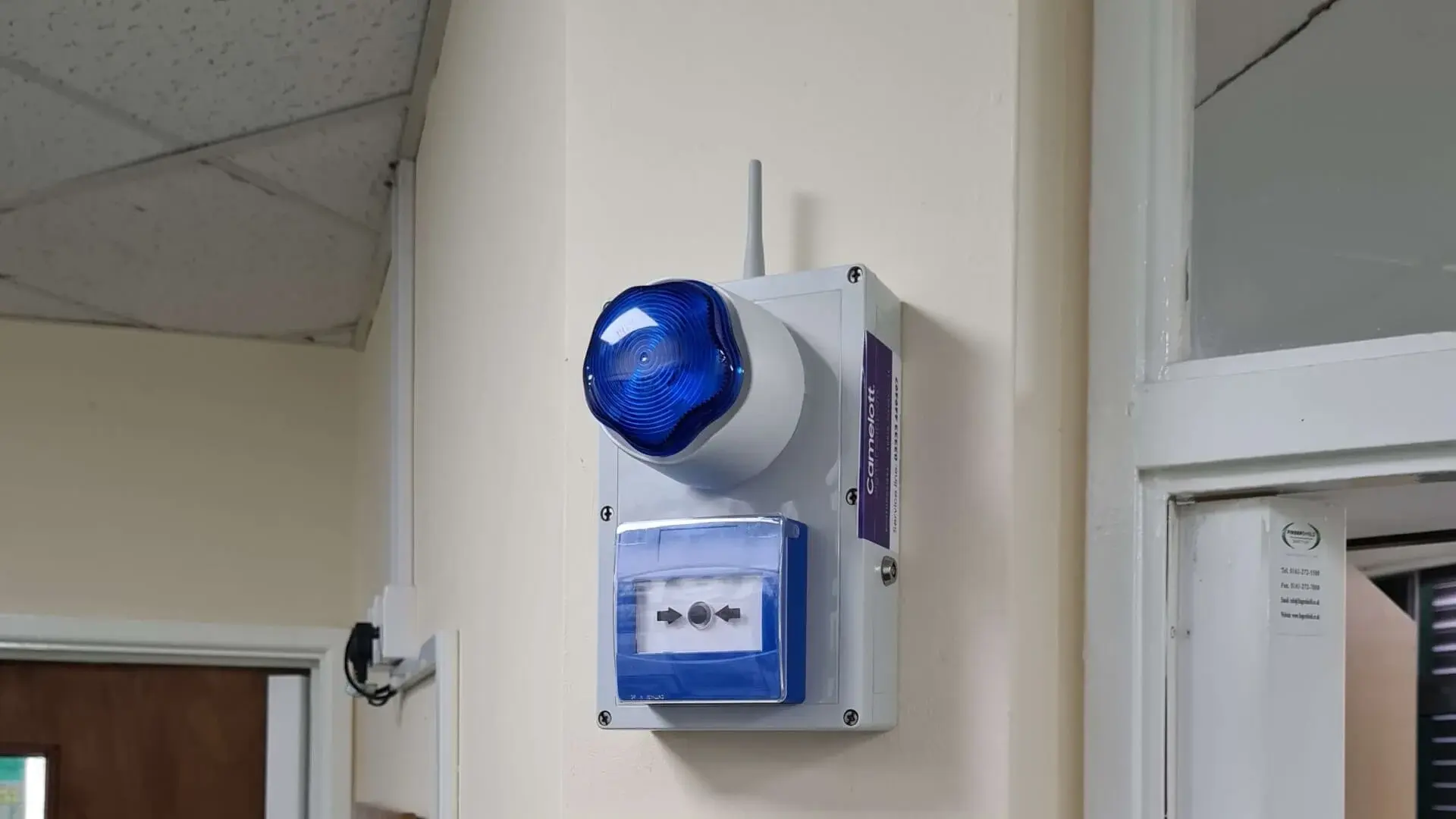

- 1 × Master Call Point: The central tactical trigger with high-security key reset.

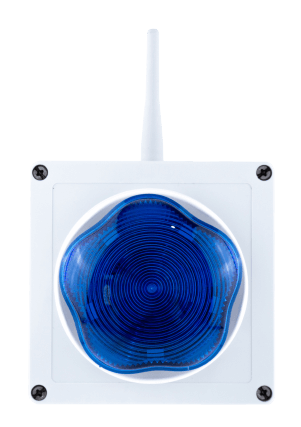

- 1 × Internal Slave Sounder: Dual-output indoor alarm with 100dB+ siren and high-intensity strobe.

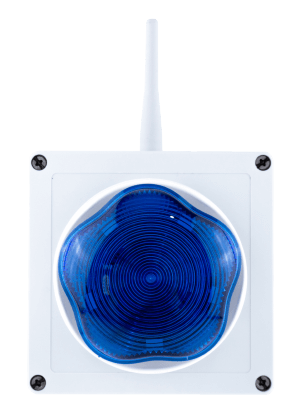

- 1 × External Slave Sounder: IP-rated, weatherproof signaling for outdoor perimeters and playgrounds.
- 1 × Remote Keyfob: Secure mobile activation for SLT, safeguarding, and patrolling staff.
- Industrial Power Sets: High-capacity batteries included for all wireless hardware.
Operation Protocol
Triggered instantly via the Master Call Point or the secure mobile Keyfob.
The proprietary RF mesh network sends a secure signal across the entire estate.
Internal and external sounders activate in unison with matching tones and visual strobes.
Technical Specification
- System Type: Wireless Mesh Lockdown Infrastructure
- Signal Frequency: 434.525 MHz Secure RF
- Operating Range: Up to 1km Line-of-Sight
- Power Architecture: 100% Independent Battery Power
- Device Capacity: Expandable to 192 Linked Devices
- Protocol: Self-Healing Mesh Topology
- Compliance: Protect Duty / Martyn’s Law Certified
System Documentation
Call Point Schematic

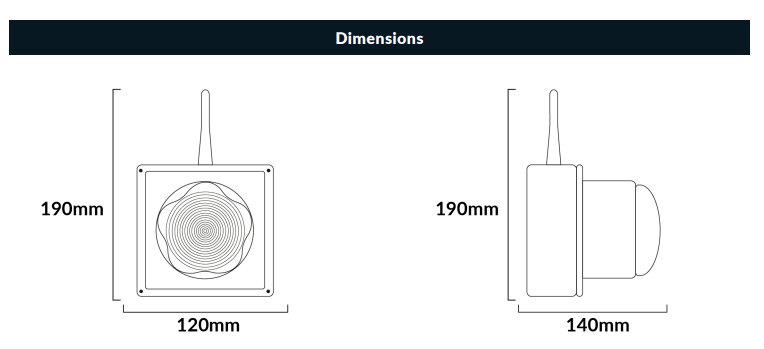

Sounder Dimensions
Keyfob Protocol
Supplied & Supported Locally
We provide end-to-end support, from initial site surveys and risk mapping to professional installation and staff training. We ensure your system is compliant, scalable, and ready for action.
Infrastructure Partner for Multi-Academy Trusts (MATs) and Public Sector Venues.
